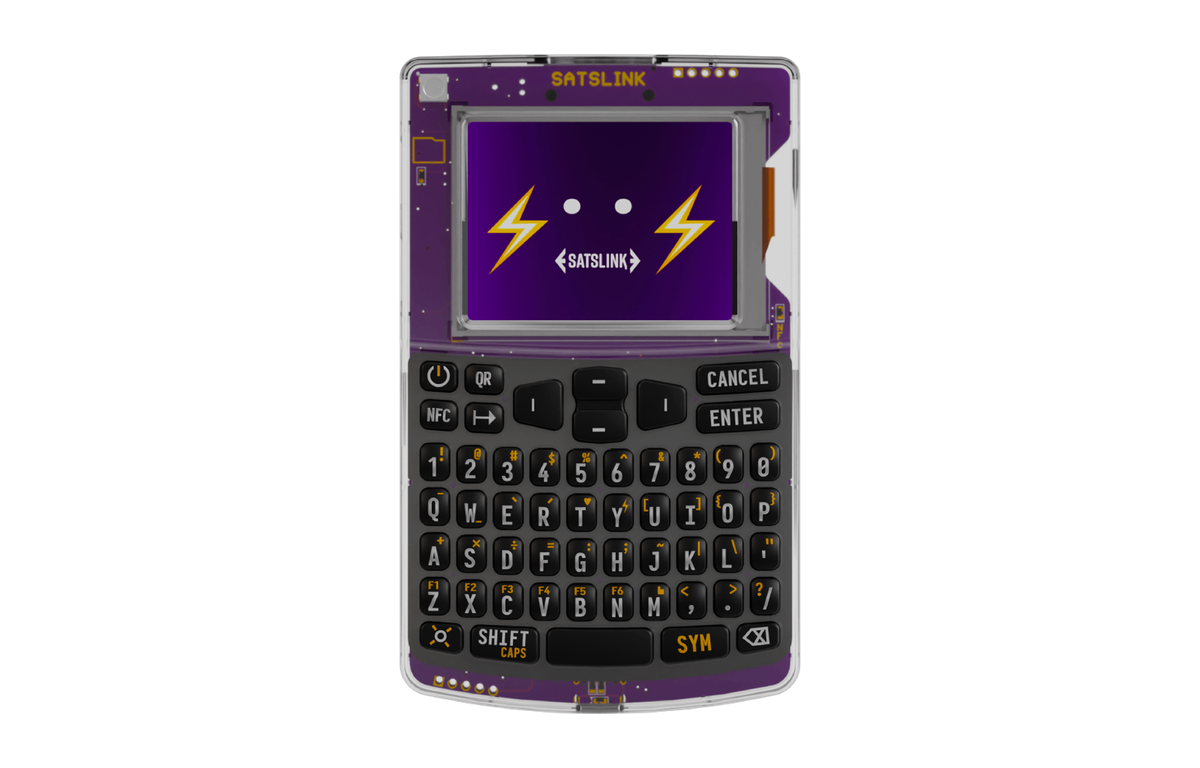

SATSLINK: Multipurpose Communications Device by Coinkite

• "At its core, Satslink is a peer-to-peer, hackable multi-purpose device. It features a secure element, as typical of Coinkite products, allowing the user to securely store private keys within the device."

"Being dissatisfied with the connected and DIY options, we felt the need to create a better hot platform. Bitcoin is expanding scripting/mpc options and we now have Nostr. Someone had to make a good connected and portable device for developers and enthusiast to create the next generation of freedom functionality,” NVK, founder at Coinkite, told Bitcoin Magazine.

• “The initial target is developers and enthusiasts,” NVK said. “But, because of the consumer friendly form factor, they will be able to start using anything the community creates. Like hot and sovereign lightning wallets and Nostr clients!”
• SATSLINK is priced at $189.99 and is currently available for pre-order on Coinkite's store.

SATSLINK specifications

• ESP32-S3 main CPU running at 240Mhz with 512k of RAM and 8M of flash (datasheet)
• Wifi (2.4Ghz) and Bluetooth support
• ESP-Now protocol for device-to-device radio, Internet access via your 2.4Ghz Wifi access point
• 320x240 colour LCD (IPS with wide viewing angle)
• Full QWERTY keyboard
• NFC tag emulation (NFC-V radio protocol)
• QR scanner module (with light, dedicated co-processor for image processing)
• RGB light for "message waiting" feature (top left corner)
• Secure element for private key storage (Infineon Trust-M, with open documentation: SLS32AIA010MHUSON10XTMA2)
• Powered by 3 x AAA cells, or USB-C port
• Dedicated keyboard scanning chip to reduce CPU load
• MicroSD slot for data transfer
• Expansion GPIO and serial port for hacking/debug (includes all ESP32 programming connections)
• Programmed in Micropython, all source fully-available; completely field upgradable with no locked-down ROM areas
• Rugged plastic enclosure
